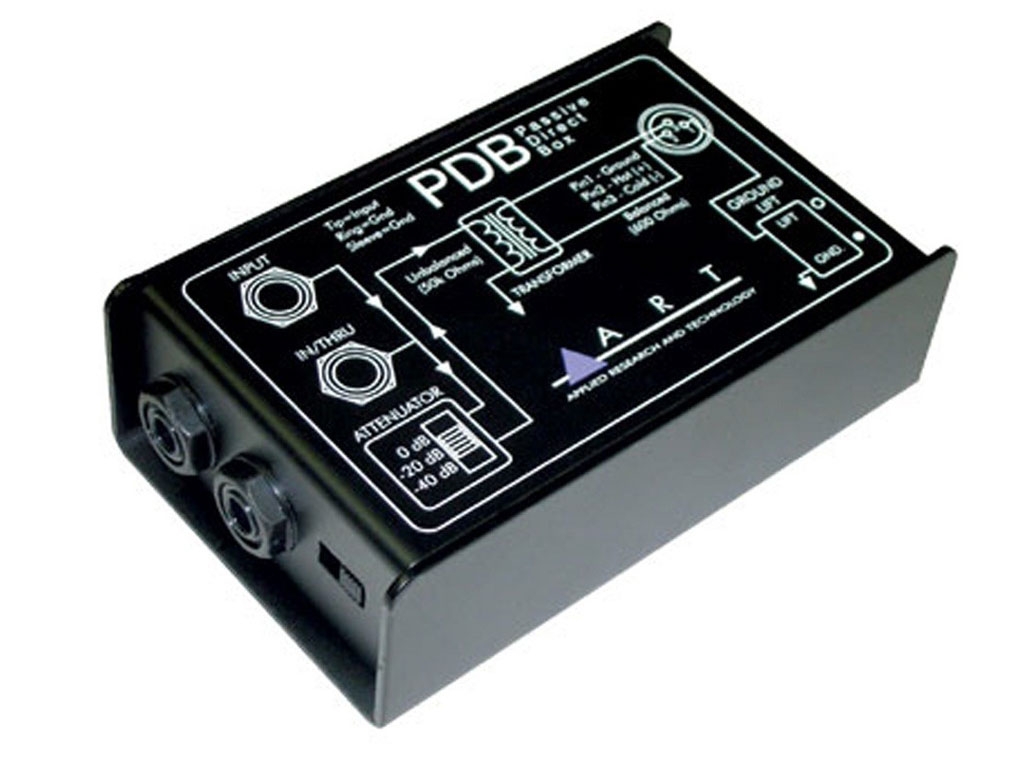

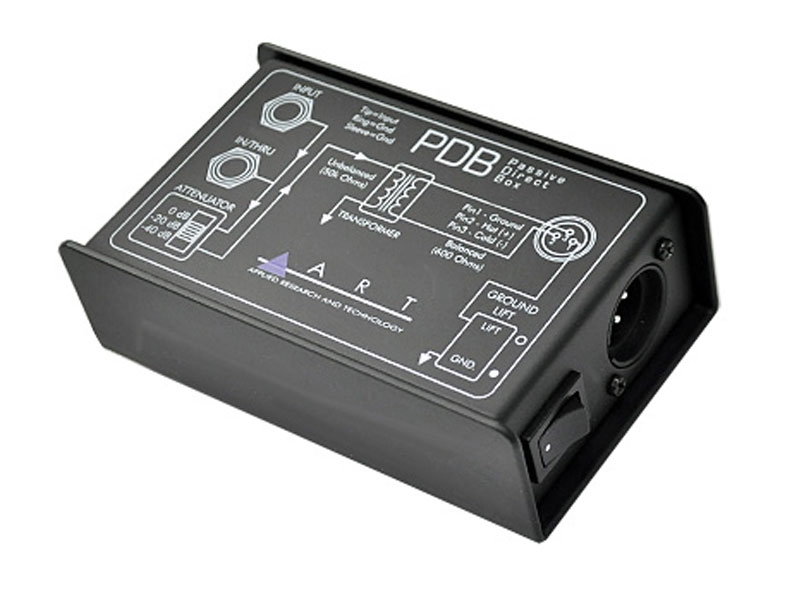

ART Audio PDB - Passive Direct Box


ART Audio PDB - Passive Direct Box



-------------- Alternate Views: ---------------


List Price: $55.99
PAS DEAL $45.99
You save $10.00!
You'll earn 35 points
.



Availability: Usually Ships in 1 to 2 Business Days

Product Code : PDB
QTY:

DESCRIPTION


PDB - Passive Direct Box,

ART

The PDB™ Passive Direct Box is a rock solid, roadworthy DI for connection of the outputs of electronic musical instruments (or other audio sources) to the balanced inputs of mixer consoles and other balanced inputs.

The PDB™ also allows connection of a music source to an instrument amplifier while simultaneously patching it to a mixer.

    Applications:
  1. Electric guitar and bass pick up output signals - The high impedance signal from a guitar or bass guitar pickup is translated by the PDB™ into a low impedance balanced signal required by mixing consoles.
  2. Keyboards and line level signals - The PDB™ automatically balances and matches the line level outputs of modern electronic keyboards. If you are using a multiple keyboard setup and your keyboards are all plugged into a single instrument amplifier, the PDB™ can be used to replace individual direct boxes. Simply send the output of the instrument amplifier to the PDB™ and then to the console (instead of a separate DI box for each keyboard).
  3. 3. DJ console output signals - DJ mixers often supply only an unbalanced -10dB signal. The PDB™ converts this signal to a balanced line level signal before it reaches the console, while providing a convenient method of connector transition with the capability to run long cables.
  4. 4. Speaker level signals - The PDB's ability to accept speaker level inputs from a power amplifier's output allows post-amplifier, post eq and effects signals to be fed directly to the console. In this manner, a particular effect or amplifier sound can be sent directly to the mix.

Specifications

Ground LiftSwitchable
Input AttenuationSwitchable (0dB, -20dB, -40dB)
Instrument Input50k Ohm
Output Jack600 Ohm XLR Output Jack
Parallel Link Jack50k Ohm
Frequency response10Hz - 50KHz +/- 0.5dB @ +4dBu
Dimensions3" x 5" x 2"
*Specifications subject to change without notice

Audio Utilities Series Overview

Audio Utilities by Applied Research and Technology are audio devices that have been designed and engineered to exceed high standards for audio performance and functionality. These innovative, high-quality components are perfect for virtually any audio application where precision frequency tailoring, reliable performance and rugged design are of the utmost importance. ART Audio Utilities deliver extremely precise and powerful flexibility, with quality features and reliable design criteria necessary for top-level audio performance.
