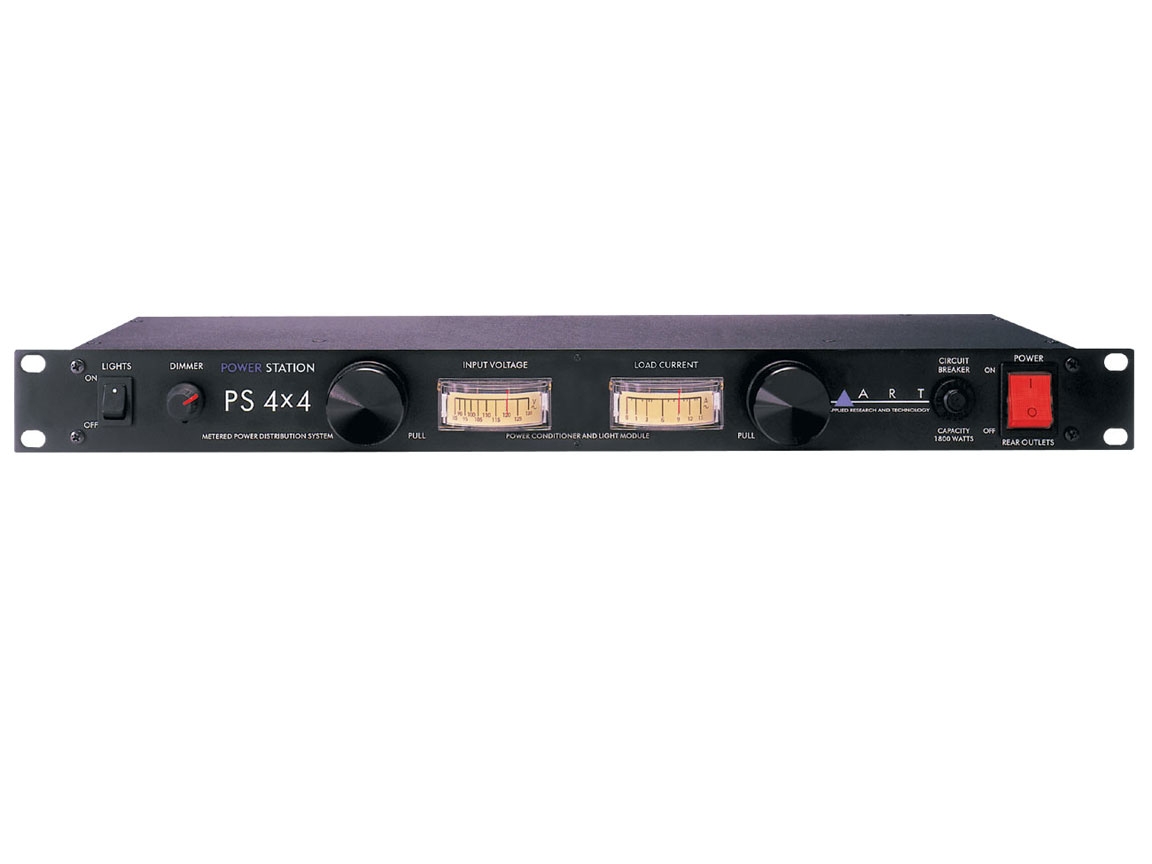

ART Audio PS4x4 - Dual Metered Power Distribution System

ART Audio PS4x4 - Dual Metered Power Distribution System



List Price: $179.00
PAS DEAL $109.00
You save $70.00!
You'll earn 109 points
.


Availability: Usually Ships in 24 Hours
Product Code : PS4X4
QTY:

Description


PS4x4 - Dual Metered Power Dist. System,

ART

The PS 4x4 features a backlit linear meter to monitor input voltage, which gives the user a familiar analog style readout when monitoring voltage from a power source. The PS 4x4 has a backlit linear Ammeter showing Load Current in amperes. This additional meter gives an analog "real-world" look at how much power you are using ...hence the term "power station". While the associated voltmeter stays relatively stable and varies slightly with line voltage and house wiring, the ammeter varies much more, as power is consumed. For example, if the unit is in a rack with digital equipment and preamps, it may not vary a lot (even if you had 8 200 watt network computers hooked up, it would show if all are up and running). However, if it is in a rack with one or more power amps, the meter's indicator may be bouncing all around - and providing a great indication of output.

The PS 4x4 also features ART's "4x4" distribution on the back of the unit -- four of the eight rear outputs are 1.25 inches apart. This allows the user to plug in wide power cables and multiple wall wart devices, and still have eight total power outlets to choose from.

Built into the PS 4x4 is a surge and spike protection system, designed to protect powered equipment from harmful electric surges and spikes. The unit also has RFI and EMI filtering, a 15 amp breaker, and a total power capacity of 1800 watts. The PS 4x4 also features a front-located on/off power switch (which lights up when turned on), and a front-mounted circuit breaker reset switch. The rugged, all-steel chassis occupies 1U rack spaces and is intended for installation into standard 19" equipment racks.

Applications for the PS 4x4 include: Live Sound Systems/PA, Permanent or Fixed Installations, Church, Club and Practice PA Systems, DJ Sound Systems, Home and Project Recording Systems, and Monitor Systems.

The PS 4x4 features a one-year warranty.

Specifications

Ammeter MeteringCurrent, Linear Metered
Circuit Breaker15 Amp; Front Location
ConstructionAll-Steel Chassis
FilteringEMI & RFI
Light Pipes2 Front Pull-Out, Shock Mounted
Power Capacity1800 Watts
Power OutletsEight Rear Outlets
Power SwitchFront Location - On/Off
Power Switch IlluminationYes - In "On" Position
Protection CircuitSurge & Spike Protection
Dimensions1U Rack Mountable
Voltage MeteringInput Voltage, Linear Metered
*Specifications subject to change without notice

Power Distribution Series Overview

For stage, studio and install, ART power distribution systems are the rugged and affordable choice of audio professionals everywhere.

ART power distribution systems feature a "4x4" distribution on the back of the unit -- four of the eight rear outputs are 1.25 inches apart. This allows the user to plug in wide power cables and multiple wall wart devices, and still have eight total power outlets to choose from.

Each model also features a surge and spike protection system, designed to protect powered equipment from harmful electric surges and spikes. The units also have RFI and EMI filtering, a 15 amp breaker, and a total power capacity of 1800 watts. The rugged, all-steel chassis occupies 1U-rack space, and are intended for installation into standard 19" equipment racks.
