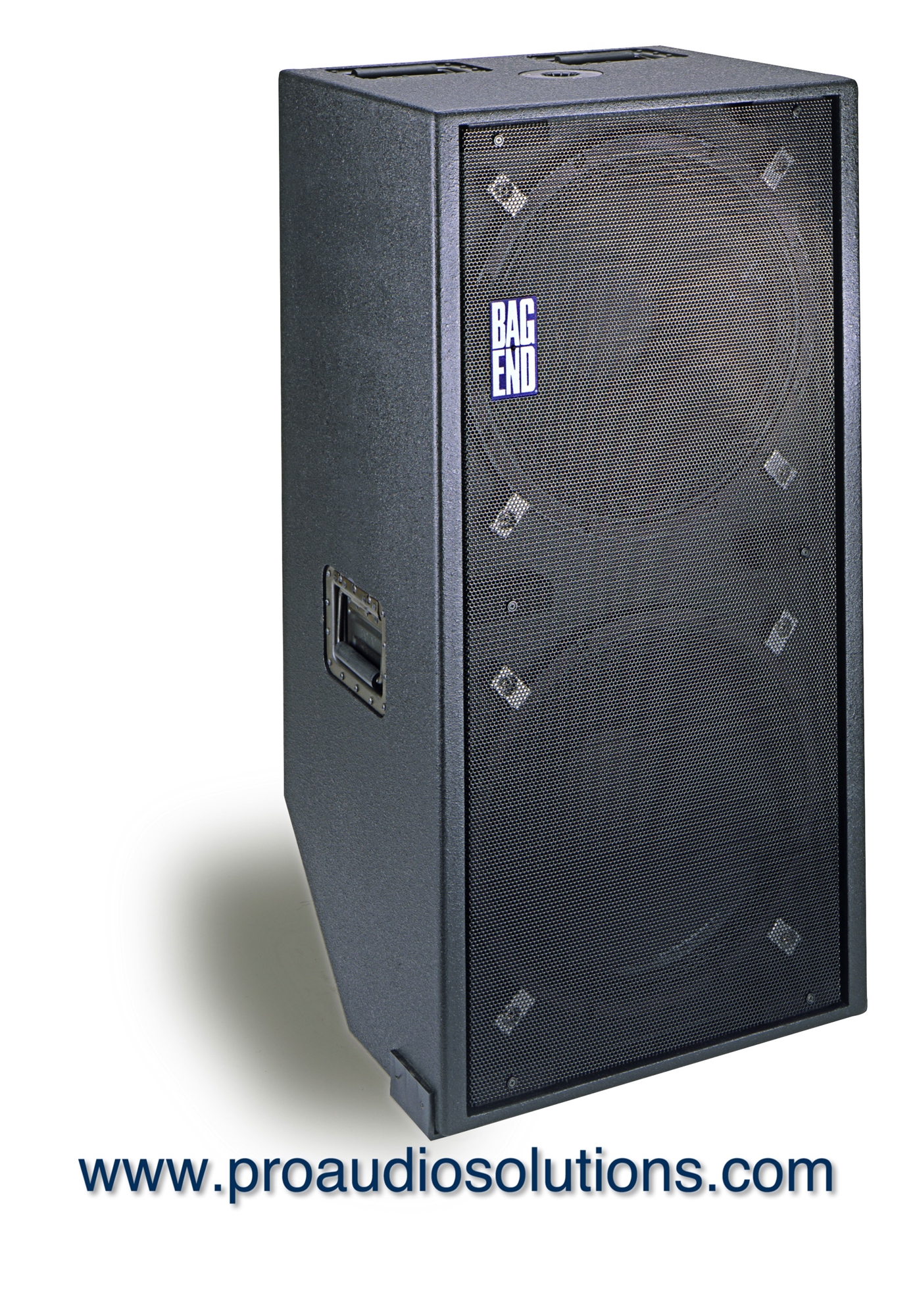

Bag End D18E-R Passive Double 18 Portable Enclosure with Casters and Front Cover


Bag End D18E-R - Double 18 Portable Enclosure with Casters and Front Cover



List Price: $2,311.00
Product Price: $1,964.35
You save $346.65!
You'll earn 1853 points
Mfg Model SKU D18E-R
.


Availability: Usually Ships in 2 weeks

Product Code : D18E-R
QTY:

DESCRIPTION SPECIFICATIONS


Bag End D18E-R Passive Double 18 Portable Enclosure with Casters and Front Cover

Product Highlights:
  • Double 18 in Passive Subwoofer System
  • Passive System Requires External Infra MXB Processor and Amplifier
  • Configured for portable applications
  • Durable Black Ro-Tex Finish
  • Dimensions: 43.5 height in x 22 in width x 18 in depth
  • Weight: 140 lbs.
  • D18E-R INFRASUB APPLICATIONS:

    Portable Sound Reinforcement Low Frequency Drum Monitor Portable DJ Systems Low Frequency Special Effects Theatrical Sound Reinforcement

    Bag End D18E-R Overview:
    The D18E-R is a high output InfraTM subwoofer system designed to provide high fidelity extended low frequency audio reproduction from a relatively small enclosure.
    The D18E-R provides perfectly at response down to 8 hertz when used in conjunction with the 8 hertz Integrator.
    Our external rack mount Infra-MXB Integrator is recommended to drive a line level InfraTM processed signal to the amplifiers driving one or more D18E-R systems.
    Designed for portable use, the D18E-R includes handles, protective corners, casters and a pole mount adapter with a Black Ro Tex finish.

    SPECIFICATIONS System Type:2 - InfrasubTM Sealed chambers 3 ft3 each
    Enclosure:18 mm 13-ply birch plywood
    Finish:Black Ro TexTM True water born environmental finish
    Grille:16 Gauge black power coated perforated steel
    Low Frequency Components:2 - EL-18A 18” Transducers, InfraTM cone, 3” Voice coil120 oz. Magnet Input

    Connector: Neutrik® speakON 1/4” combo jack
    Hardware: 8 - Recessed handles 35 mm Pole mount adapter 8 - Machined aluminum speaker mounting clamps 2 - UHMW polyethylene feet 2 - 3 1/2” Rigid casters

    Crossover Type: Requires external InfraTM Integrator
    Sensitivity: 100 dB SPL @ 80 Hz (2.83 V @ 1m)
    Frequency Response: 60 Hz to 250 Hz ±3 dB 8 Hz to 95 Hz ±3 dB with external InfraTM Integrator Low Frequency Limit: 8 Hz Maximum Calculated Continuous
    Acoustic Output: Half Space @ 1 Meter 10 Hz - 96 dBSPL 20 Hz - 108 dBSPL 40 Hz - 124 dBSPL 80 Hz - 130 dBSPL
    Power Handling: 800 W continuous (AES) 1600 W program
    Recommended Amplifier Power: 800 to 1600 W at rated impedance
    Rated Impedance: 4 Ohms
    Polarity: A positive asymmetrical signal applied to the + terminal will result in a positive asymmetrical acoustical pressure
    Dimensions: 43.5”h x 22”w x 18”d (111 cm x 56 cm x 46 cm )
    Weight: 140 lbs (64 kg )
