JBL VRX932LAP - Powered 12" 2-way line-array system


JBL VRX932LAP - Powered 12" 2-way line-array system



-------------- Alternate Views: ---------------


List Price: $5,186.01
Product Price: $3,339.00
You save $1,847.01!
You'll earn 2699 points
PLEASE NOTE: VRX932LAP
Mfg Model SKU VRX932LAP
UPC Code 50036903493
.



Availability: Usually Ships in 1 to 2 Business Days

Product Code : VRX932LAP
QTY:

DESCRIPTION

12 in. Two-Way Powered Line Array Loudspeaker System

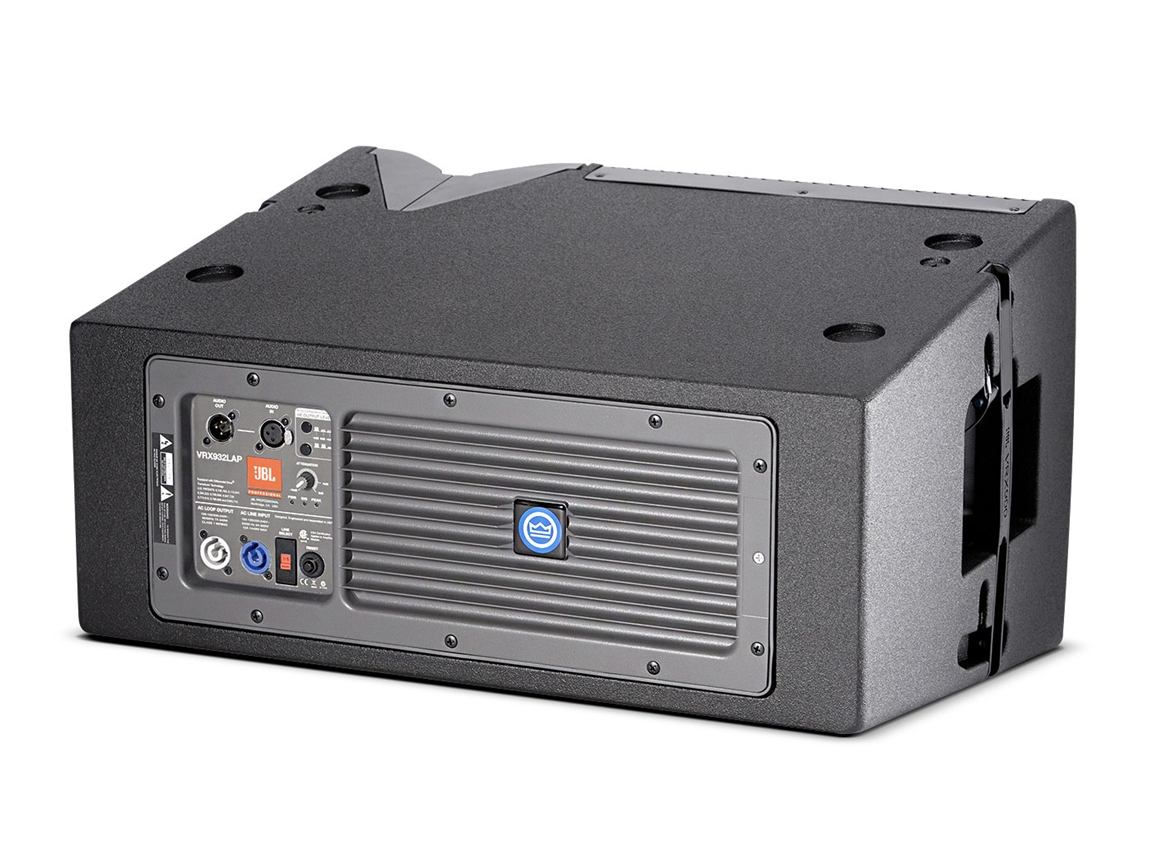

The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.
FEATURES
  • Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
  • JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
  • VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
  • Constant Curvature waveguide for unprecedented array coherence.
  • Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
  • Array Configuration Selector permits "array shading".

SPECIFICATIONS
Power Rating1750 Watts Peak
875 Watts Continuous
Frequency Range57 Hz - 20 kHz
(-10 dB)
Dimensions
(H x W x D)
349 mm x 597 mm x 444 mm
(13.75 in x 23.5 in x 17.5 in)
Frequency Response75 Hz - 20 Hz
(+/-3db)
Maximum Peak Output136 dB SPL at 1m
Coverage Pattern100 x 15 nominal
DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance)LF: 750 Watts, HF: 125 Watts
DPC-2 Output SectoinLF: Dual-Bridged Technology™, Class D
Audio Input ConnectorXLR with loop through
LF Driver1 x JBL 2262FF 305 mm (12 in) neodymium magnet
HF Driver3 x JBL 2408J, 38 mm (1.5 in)
User ControlsInput Attenuator (0-16 dB)
Signal ProcessingsDSP based, resident in Input Module
AC Power Operating Range90-132 VAC or 216-264 VAC, 50/60 Hz
AC Input ConnectorNeutrik PowerCon (NAC 3MPA)
AC Loop Through ConnectorNeutrik PowerCon (NAC 3MPB)
AC Current Requirements6A per system at 120V, 3A per system at 240V
Enclosure25/15 mm, 11-ply birch plywood
Suspension / MountingOptional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
FinishBlack DuraFlex™ finish
GrillePowder coated, black, 16-gauge perforated steel with with acoustically transparent foam
Net Weight24 kg (52 lb)
Optional AccessoriesVRX-AF: Suspension array frame
