JBL CONTROL 30 - Indoor/Outdoor 3-Way Monitor Loudspeaker, BLACK, SINGLE

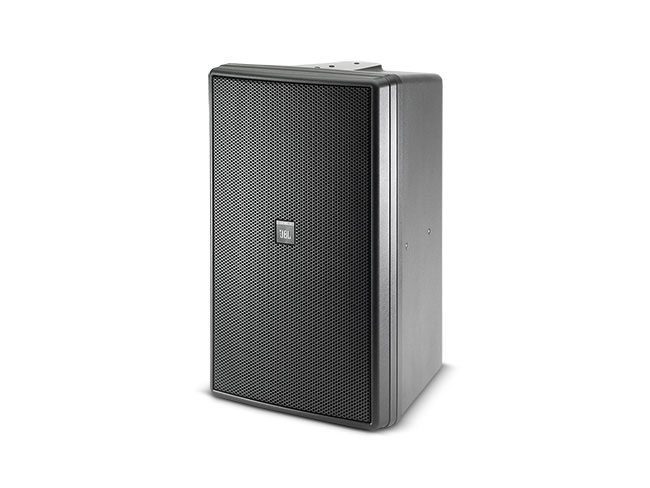

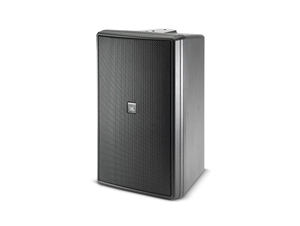

JBL CONTROL 30 - Indoor/Outdoor 3-Way Monitor Loudspeaker



List Price: $1,029.00
Product Price: $819.00
You save $210.00!
You'll earn 686 points
Mfg Model SKU CONTROL 30
UPC Code 50036903400
.


Availability: Usually Ships in 1 to 2 Business Days

Product Code : CONTROL30
QTY:

DESCRIPTION


JBL CONTROL 30 - Indoor/Outdoor 3-Way Monitor Loudspeaker, BLACK, SINGLE


Three-Way High Output Indoor / Outdoor Monitor Speaker
The Control 30 utilizes high power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques, and a complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled, defined coverage from a compact loudspeaker.
FEATURES
  • Extended bandwidth, extremely smooth frequency response.
  • Fully outdoor-capable design, featuring WeatherMax™.
  • 120° x 110° HF coverage.
  • 150 W transformer for 70 V or 100 V lines, with 8 thru.
  • SonicGuard® overload protection.
  • 250 mm (10 in) fiberglass / Kevlar® cone LF woofer, with neodymium magnet coaxial 125 mm (5 in) anodized aluminum cone MR, and 25 mm (1 in) titanium diaphragm compression driver.
  • Includes InvisiBall® mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket.
  • Sealed input panel cover and screw-down input terminals.

SPECIFICATIONS
Frequency Range38 Hz – 17 kHz (-10 dB)
Power Capacity500 W Continuous Program Power; 250 W Continuous Pink Noise
Transformer Taps70 V: 150 W, 75 W, 38 W, 19 W 100 V: 150 W, 75 W, 38 W
Thru Position: 4 ohms nominal
Frequency Response40 Hz – 16 kHz ( ± 3 dB)
Maximum SPL @ 1mShort-Term: 123 dB; Long-Term: 117 dB
Nominal Sensitivity93 dB, 1W @ 1m (3.3 ft)
Nominal Coverage Angle120° H x 110° V
Directivity Factor (Q)5.2 dB, averaged 500 Hz to 10 kHz
Directivity Index (DI)7.1 dB, averaged 500 Hz to 10 kHz
Nominal Impedance4 ohms
Crossover Network3rd order Low Pass LF, 2nd order High Pass/3rd order Low Pass MF, 3rd order High Pass, HF, plus conjugate shaping circuitry.
Low Frequency250 mm (10 in) fiberglass/Kevlar® cone with pure butyl rubber surround, 50 mm (2 in) voice coil on fiberglass former, neodymium magnet
Mid Frequency125 mm (5 in) anodized aluminum cone with EPDM rubber (Terpolymer of Ethylene and Propylene) surround, 25 mm (1 in) voice coil on fiberglass former
High Frequency25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround
Enclosure MaterialHigh Impact PolyStyrene (HIPS) with 10% glass fill plus patent pending internal 5 mm foamed polyurethane secondary mold
GrilleThermoset composite coated steel, WeatherMax multi-layer foam
Overload ProtectionSonicGuard full range power limiting to protect network and transducers.
EnvironmentalIEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.
TerminationsScrew-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open
Safety Agency RatingTransformer is listed per UL1876
ColorsBlack or white (-WH)
Dimensions (H x W x D)593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in.)
Net Weight (ea)18.9 kg (42 lb)
Shipping Weight (ea)20.3 kg (45 lb)
Included Accessories1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 305 mm InvisiBall Hex wrench.
Optional AccessoriesMTC-30CM (-WH) to install speaker down from the ceiling. MTC-30UB (-WH) U-Bracket
