Whirlwind PCDIHW - Stereo Direct Box, 1/8 Hardwired input tail

Whirlwind PCDIHW - Stereo Direct Box, 1/8 Hardwired input tail



-------------- Alternate Views: ---------------
Product Price: $220.00
You'll earn 156 points
.



Availability: Usually Ships in 1 to 2 Business Days

Product Code : PCDI-HW
QTY:

DESCRIPTION

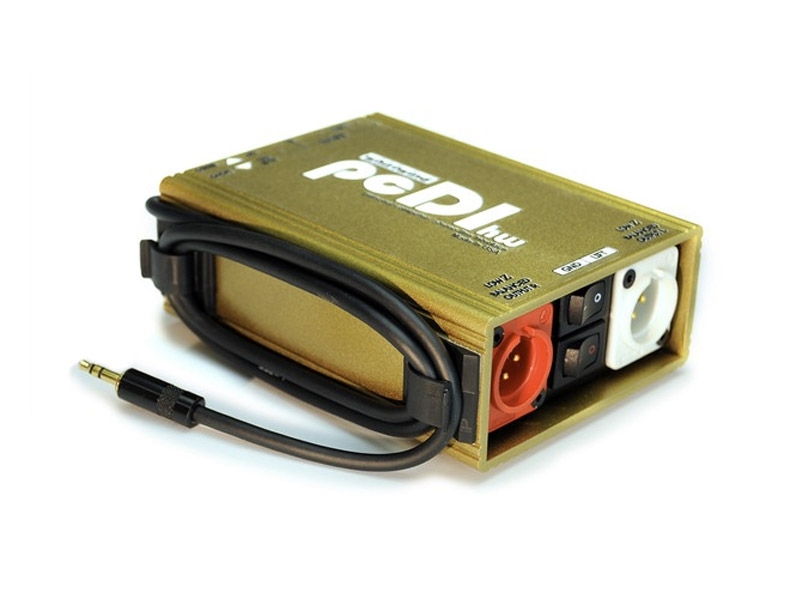

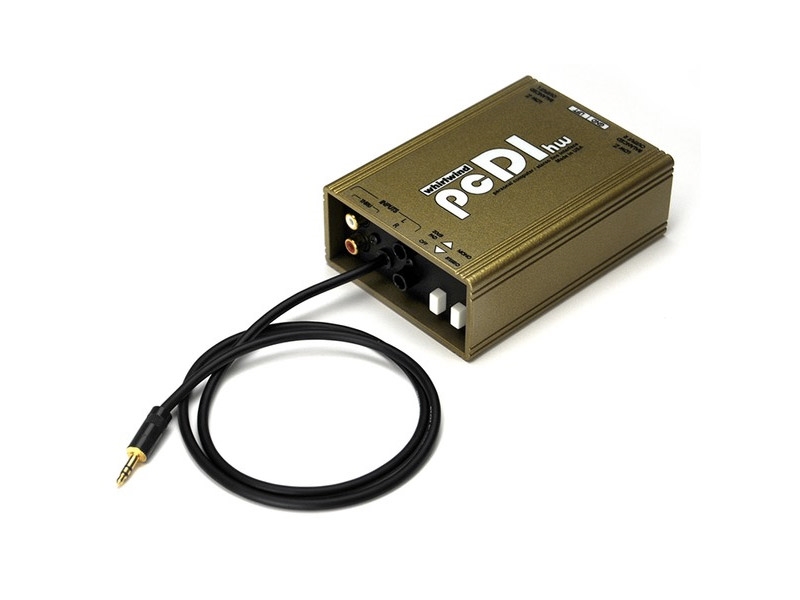

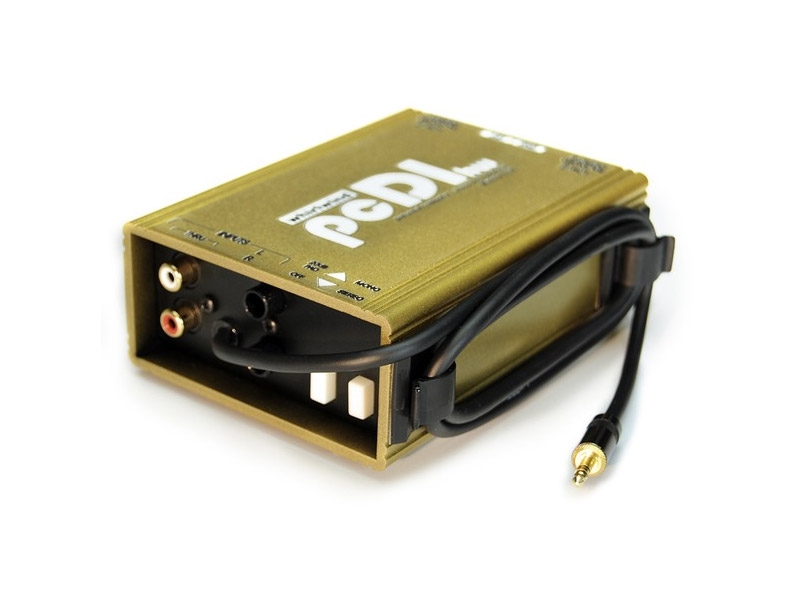

The Whirlwind pcDIhwb is a PCDI with a hard wired tail terminated with a stereo 3.5mm plug, perfect for interfacing the outputs of CD players, computer sound cards, iPODs® / MP3 players, tape decks, etc. with professional, balanced, low impedance equipment. (with no chance of losing the cable)

This unit contains two separate DIs - input your signals with one hard wired, 30 inch 3.5mm (1/8") mini TRS stereo plug, two sets of color coded RCA phono type input and through jacks or 1/4" TS input jacks. Output is via corresponding color coded XLRs.

Features:

  • Color coded RCA phono in / through jacks
  • 3.5 mm input plug on a 30" hard wired cable
  • 1/4" TS input jacks
  • Color coded XLR output jacks
  • Ground Lift switch to help eliminate hum and buzz
  • Stereo/Mono switch for stereo operation or safely combine both inputs into a mono signal sent to both outputs
  • 20dB pad switch for connection to "hot" input signals
  • Uses Whirlwind's TRHL-M transformers with metal shield

Model # - PCDIhw
Impedance Ratio (input to output, per channel): 133:1
Frequency Response: 20Hz-20kHz ±1dB
Level Change (input to output): -20dB (pad out), -40dB (pad in)
