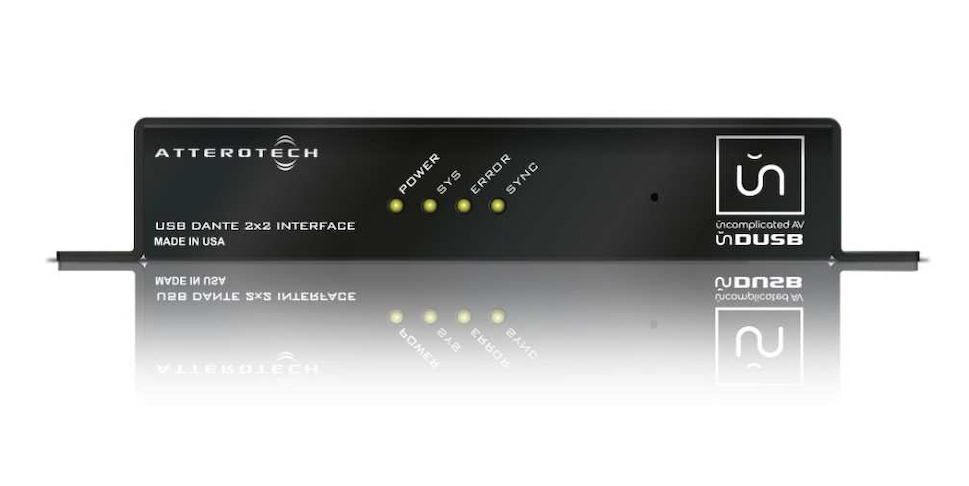

QSC Attero Tech DBU USB/Bluetooth Network Audio Interface

Attero Tech QSC unDUSB - 2x2 Dante to USB Bridge interface

• Any USB device can be added to Dante network with UNDUSB

• Fully DDM-Ready

• Supports AES67 interoperability mode
• SB B-Type connector for east connection to laptop, desktop, and other USB host equipment

• PoE powered to work with any compliant 802.3af PoE network switch or mid-span injector,
• external +9 VDC to +24 VDC supply or,
• can be powered from the Power Link Output connector of other Attero Tech devices that support Power Link for maximum flexibility

Attero Tech unDUSB

Applications

• Audio and video conferencing - use the in-room Dante sound system with soft codecs like Skype
• Conference room presentation audio - use the in-room Dante sound system for best fidelity
• House of Worship/Conference Centers - easy recording of Dante audio to a laptop or desktop application
• Use any PC or Mac for a BGM music server directly to a Dante audio system
• Academic/Lecture Hall for easy PC to Dante presentation audio connectivity

unDUSB Specifications

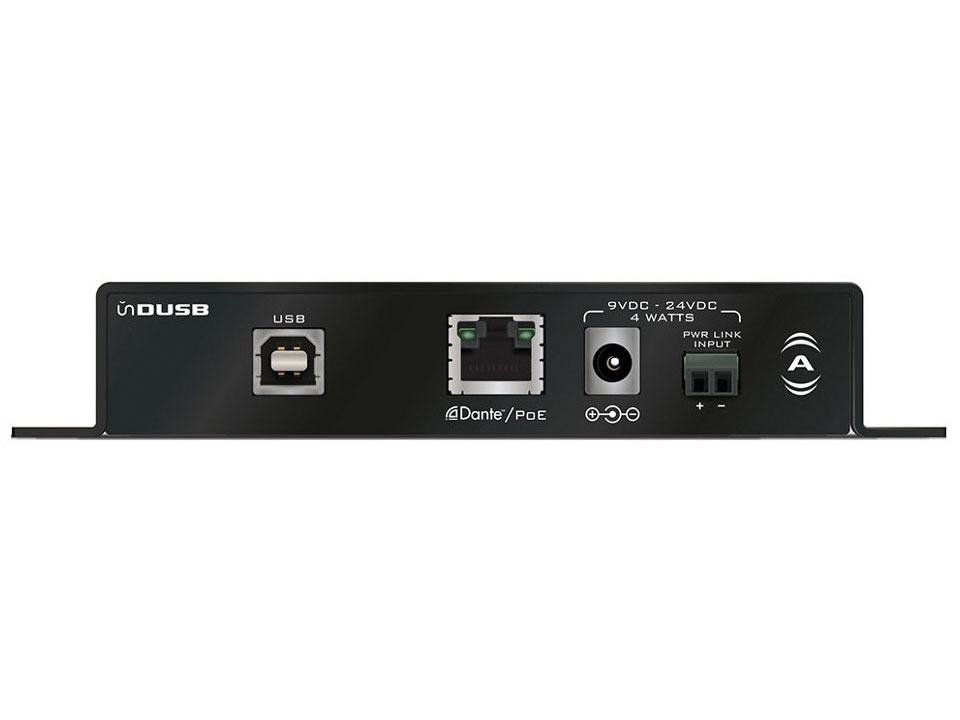

• Connection Types: USB - Type B, RJ-45
• Max # of Output Channels: 2
• Max # of Input Channels: 2
• Frequency Response: +/- 1 dB, 20 Hz - 20 kHz
• Power Supply: 9-24 VDC wall wart, PoE, Daisy chain power link
• Power Consumption: Less than 4 W
• PoE Class: Class 0 802.3af PoE PD compliant
• Dimensions: 1.06" H x 6.45" W x 3.45" D
• Certifications:
• FCC CFR 47 Parts 15 B
• ICES-003
• CE (EN55022)
