Jensen PB2XX Stereo Audio input and output Isolator

Jensen PB2XX  Stereo Audio input and output Isolator



Product Price: $349.99
You'll earn 350 points
Mfg Model SKU PB2XX
.


Availability: YES, in stock

Product Code : PB2XX
QTY:

DESCRIPTION

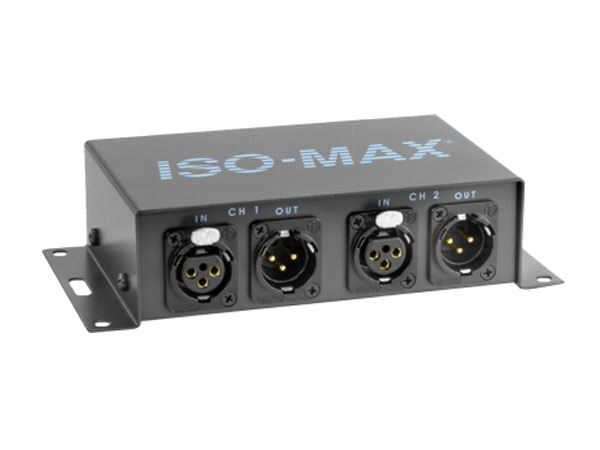

Jensen PB2XX Stereo Audio input and output Isolator


The Iso•Max PB-2XX is a two-channel universal isolator that gives you the freedom to solve noise problems anywhere in the signal chain.

  • Eliminates hum and buzz caused by ground loops
  • May be used anywhere in the signal chain
  • Ruler flat frequency response from 1 Hz to 200 kHz
  • Plug and play easy to use, no power required

The design begins with a rugged flanged enclosure that comes standard with gold plated XLRs and a removable screw-down barrier strip for easy installation in NEMA enclosures and 19” racks. Plug and play easy to use, this passive interface does not require any power to work. Inside are two specially designed Jensen multi-tap isolation transformers that provide unity gain, signal boost or level attenuation depending on how they are configured. These are able to withstand signals in excess of +24 dB without discernible distortion while delivering a fabulously linear response to 200 kHz. This provides galvanic isolation between the input and output to eliminate hum and buzz caused by ground loops, rejecting noise by as much as 125 dB. To further optimize the performance, a bottom mounted eight position ‘set & forget’ dip switch enables the user to configure the PB-2XX grounding scheme as needed.

You simply connect the PB-2XX anywhere you like between the source and destination and the PB-2XX will quietly go to work, eliminating ground loops, electromagnetic interference (EMI) and RFI problems. This makes the Iso•Max PB-2XX a superb choice for the most demanding studio, broadcast and performance venue installations.
