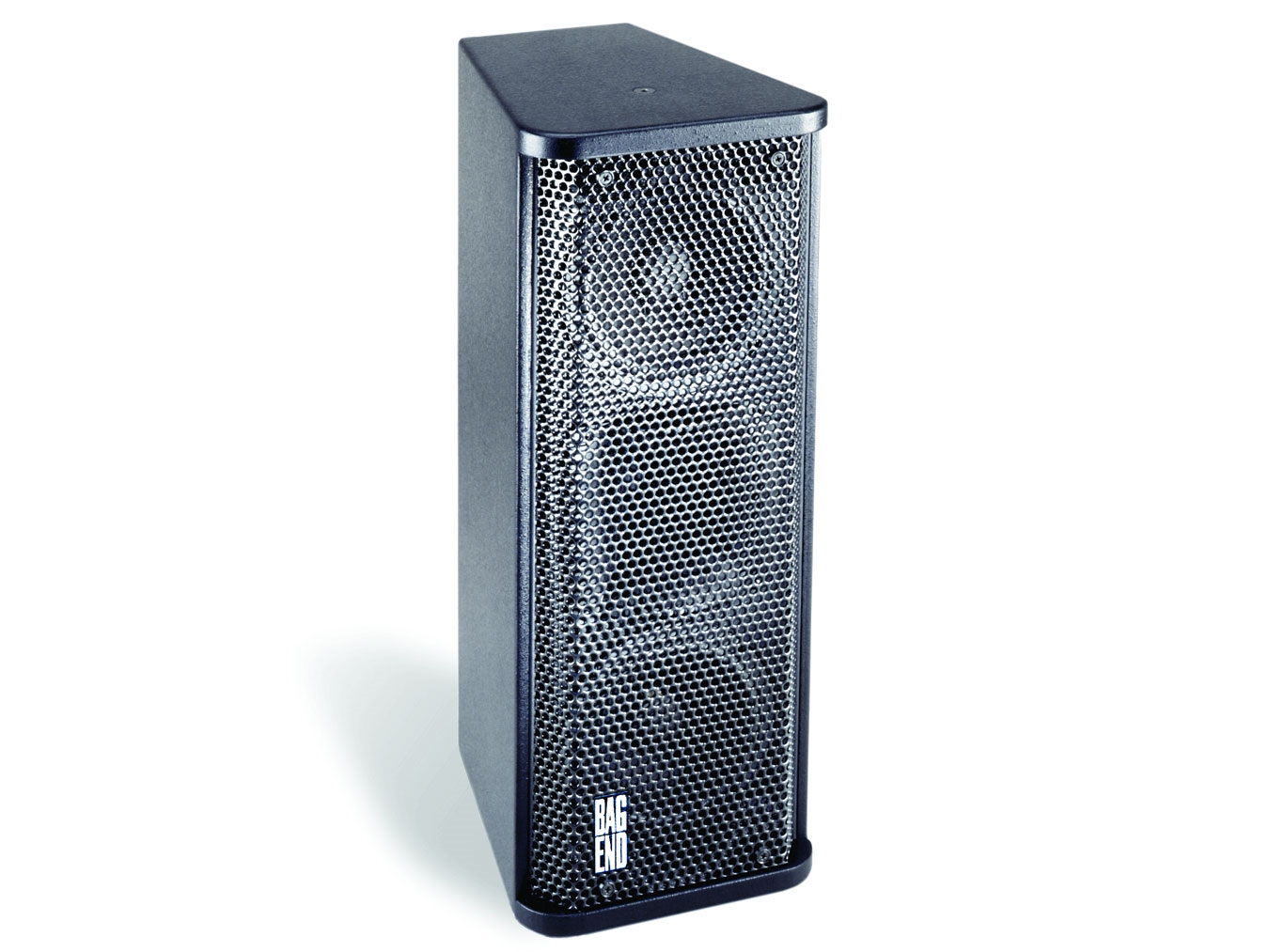

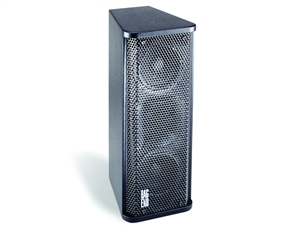

Bag End TA6002-R RO-TEX Finish Double 6" 2-Way Portable Enclosure

Bag End TA6002-R

List Price: $869.00
PAS DEAL $739.00
You save $130.00!
You'll earn 739 points

Availability: Usually Ships in 3 to 4 Business Days
Product Code : TA6002-R


Bag End TA6002-R RO-TEX Finish Double 6" 2-Way Portable Enclosure

Made in the USA
Support American made products
Our future depends on it



  • Portable PA Systems
  • Audio Visual Presentations
  • Home Theater
  • Foreground Music Systems
  • Under Balcony Reinforcement
  • Church Sound Reinforcement

The TA6000-R is a compact portable speech range loudspeaker system offering both high fidelity and high efficiency. The Time-Aligned™ studio quality sound provides detail and clarity not found in other designs. For high power applications, the addition of an INFRA™ subwoofer extends the capabilities to full range sound reinforcement. The TA6000-R is made from durable birch plywood coated with black textured paint. Included are rigging attachment points, a stand adapter and a rugged steel grille.


System Components
15 mm 11-ply birch plywood

Low Frequency Transducers:
2 - 6.5" Cone
1.5" Voice coil
30 oz. Magnet

High Frequency Transducer:
1" Exit compression driver
1.8" Titanium diaphragm
15 oz. Magnet
Radial horn

Input Connectors:
1 - Dual banana
2 - 1/4" Phone
2 - Neutrik Speakon

16 Gauge black powder coated
perforated steel

Standard Hardware:
Rigging points
1 - 35 mm Stand adapter

Optional Hardware:
Forged steel eyebolts
High impact abrasion resistant UHMW polyethylene bumper set

Acoustic and Electrical
System Type:
2-way vented - 0.6 cu. ft.

8 Ohms

Crossover Network:
Passive Time-Align equalizer type at 2.1 kHz

Time Offset Between Drivers:
< +/- 25 Microseconds

Frequency Response:
95 Hz to 20 kHz +/- 3 dB
(4 pi Steradians)

95 dB SPL (1W @ 1m)

80 degrees Horizontal (-6 dB)
60 degrees Vertical (-6 dB)
(Horn may be rotated 90 degrees for a 60 degrees H x 80 degrees V dispersion)

Power Handling:
150 W continuous sine wave
600 W instantaneous peak

Black textured paint

22.5"h x 9"w x 11"d
58 cm x 23 cm x 28 cm
Trapezoidal, 10 degree taper per side

27 lbs.
13 kg
