PHS48 Phantom Power Tester, Schoeps

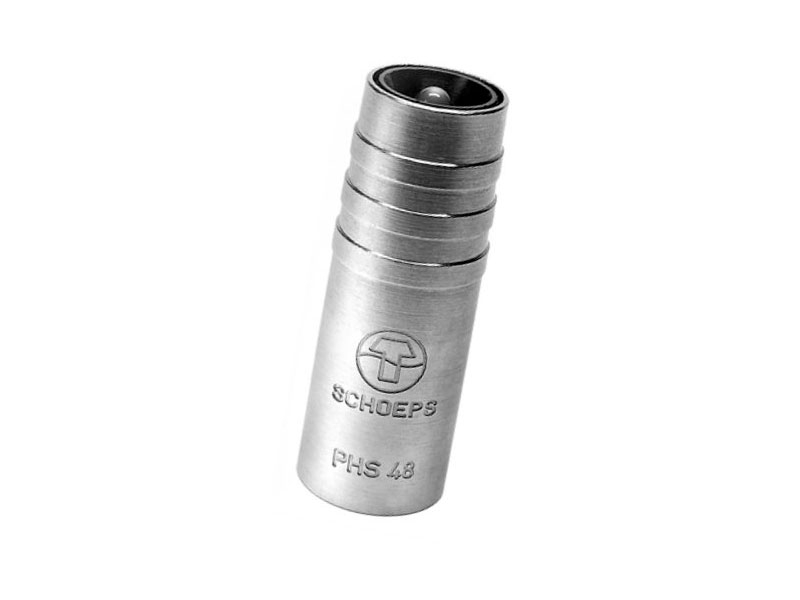

Schoeps PHS48 Phantom Power Tester

List Price: $46.00
PAS DEAL $46.00
You'll earn 46 points

Availability: Usually Ships in 1 to 2 Business Days
Product Code : PHS48

Description Specifications
PHS 48,Phantom Power Tester,Schoeps

The PHS 48 can be plugged into a microphone input or cable that carries 48-Volt phantom power, to verify that sufficient current is available to power a SCHOEPS microphone.

According to the standards, a 48 V phantom powered microphone may draw a current of up to 10 mA per channel. SCHOEPS CMC 5, CMC 6 and CCM microphones actually need only 4 mA (ca. 5 mA if Active Accessories are used), so the PHS 48 tests for approximately this amount of available current at the required voltage level.
  • quick test of 48 V phantom powering (current)
  • indication by a green LED
