Primacoustic Surface Impaler Broadway Wall Mounting Clip F101-1000-00 (24 pcs/box)


Primacoustic Surface Impaler Broadway Wall Mounting Clip F101-1000-00 (24 pcs/box)



Product Price: $39.99
You'll earn 40 points
Mfg Model SKU F101-1000-00
UPC Code 676101037674
.



Availability: YES, in stock

Product Code : IMPALER-WALL-24
QTY:

DESCRIPTION


Primacoustic Surface Impaler Broadway Wall Mounting Clip F101-1000-00 (24 pcs/box)

Broadway™ Mounting Options

  • Simple mounting system anyone can do!
  • Perfect for all types of installations
  • Easy to relocate without marring the walls

The Surface Impaler from Primacoustic is used to provide the installer with a simple, quick and effective method of mounting Broadway fiberglass acoustic panels onto walls, without causing serious surface defacement.

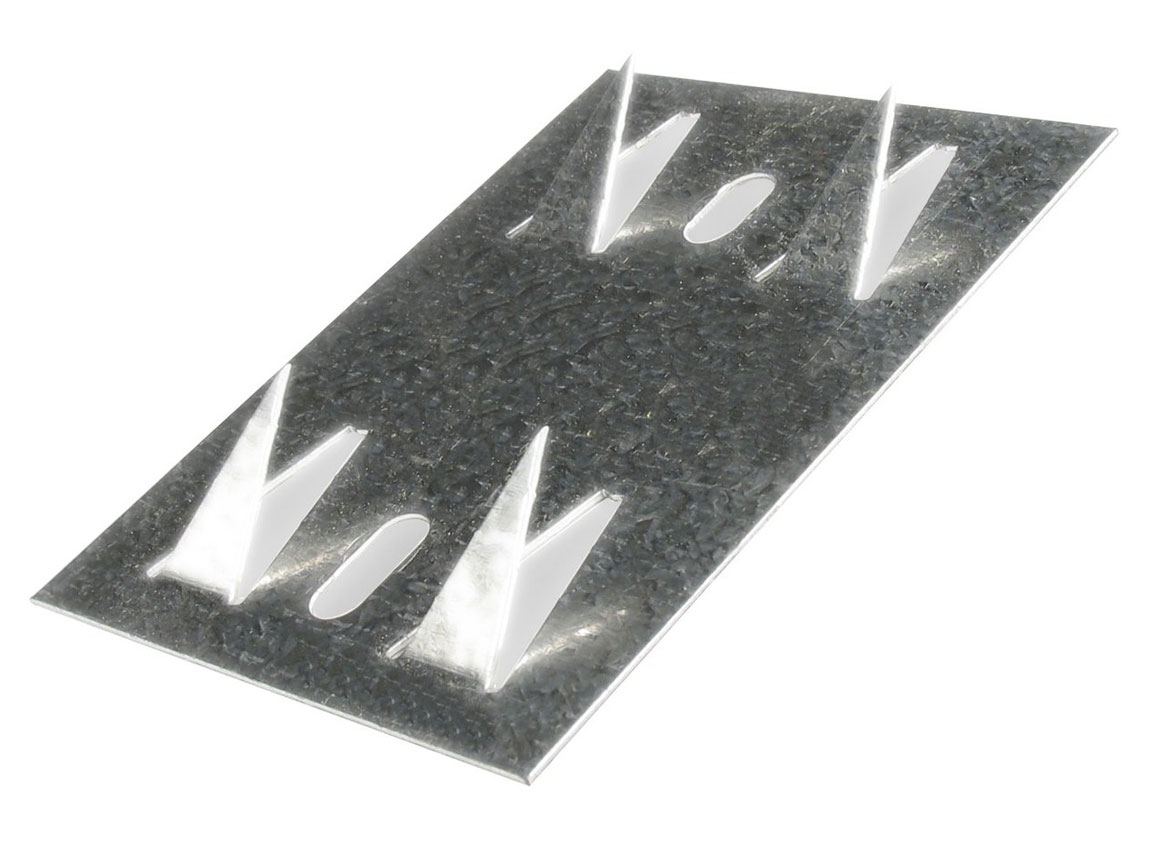

The 20 gauge galvanized steel impaler features a series of sharp protruding darts that penetrate the panel to secure it in place during installation. To ensure panels do not get dislodged after installation, applying a dab of construction adhesive to the impaler darts during the mounting process adds a level of security and reduces opportunity for tampering.

Impalers are installed using typical sheetrock anchors and screws. Maximum load limit is 12 lbs, dependent on the wall fasteners.

Alternate installations that can be considered include direct screw down using a long screw and retaining washer. This is typically done using a standard screw and a wide faced washer to hold the panel in place. This is a good option in industrial installations where panels may find themselves in harms way or need to be secured on ceilings. Velcro is also a possible option where light duty installations are needed. Finally, for permanent installations, construction adhesive is used by applying a generous bead around the circumference and then crossing from corner to corner. Use a surface impaler to anchor the panel while the adhesive cures.

Whatever your choice, Broadway panels are sure to provide a great looking and effective installation!

Surface Mounting

Primacoustic surface mount impalers are designed to mount Broadway fiberglass acoustic panels directly onto the wall surface. This is the most popular mounting system and is ideal for studio and home-theatre. For commercial installations, adding a dab of construction adhesive on the impaler surface will add a measure of security. Best of all, unlike spray-on installations, using impalers will not cause serious wall surface defacement.

Wall Mounting:

Place top edge on set line. Carefully swing bottom edge to meet Impaler heads. With the panel resting on the Impaler darts, apply in towards wall and downward pressure. Surface Impalers should be located approximately 4" (10.16cm) or more from the panel edges.
